Portable bridge-mounted piezo for extended-range nylon-string guitar
NG-7S is the perfect solution for 7-string classical guitar players who want to capture the sound of their extended range instrument.
Live or in the studio, it's a classical guitar pickup that brings true nylon-string sound and does it without an installation that requires modification.
Features:
Install with no modification

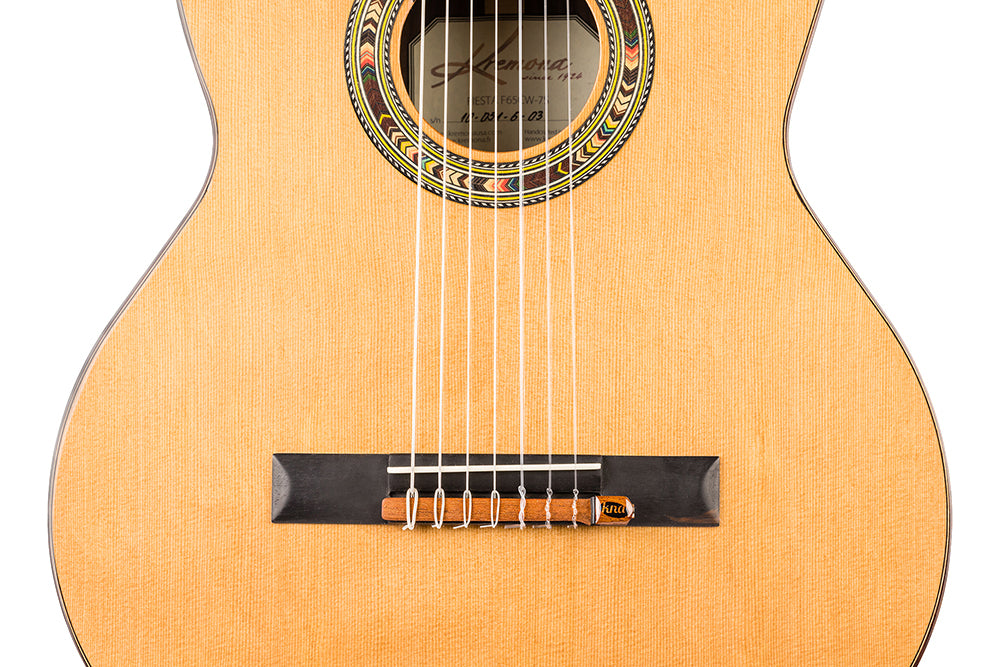

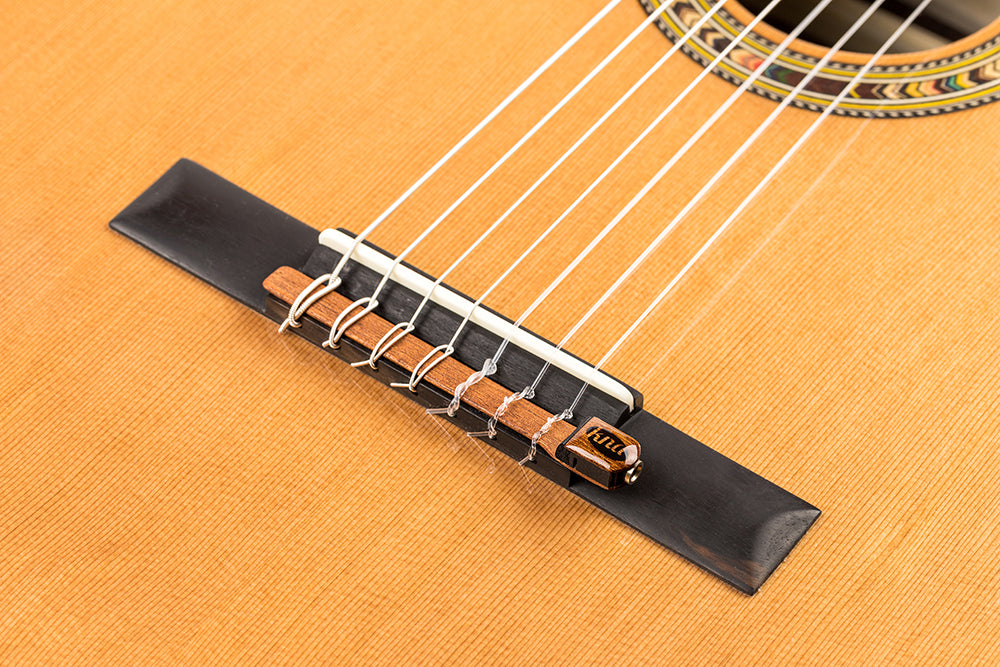

Unlike other guitar pickups, NG-7s installs safely and securely on the 7-string classical or flamenco guitar tie block utilising the tension of the strings.

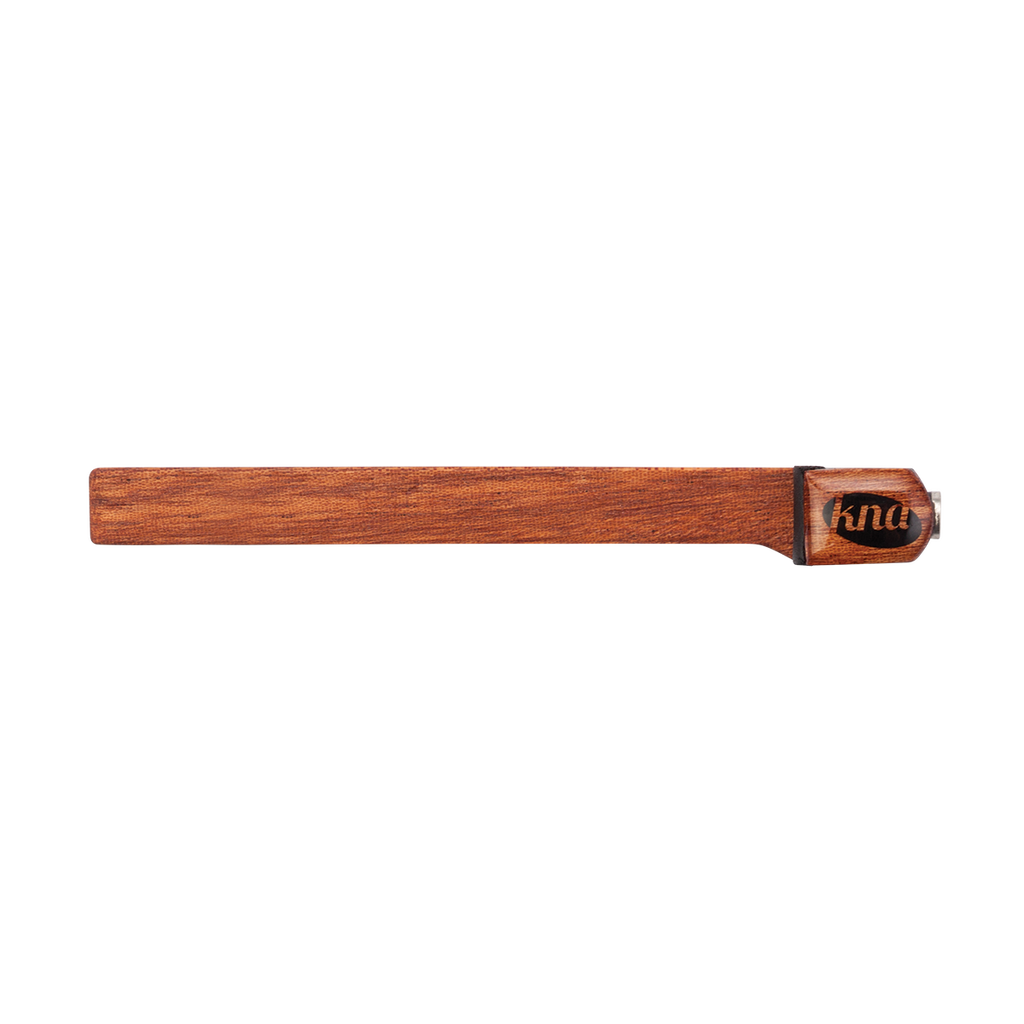

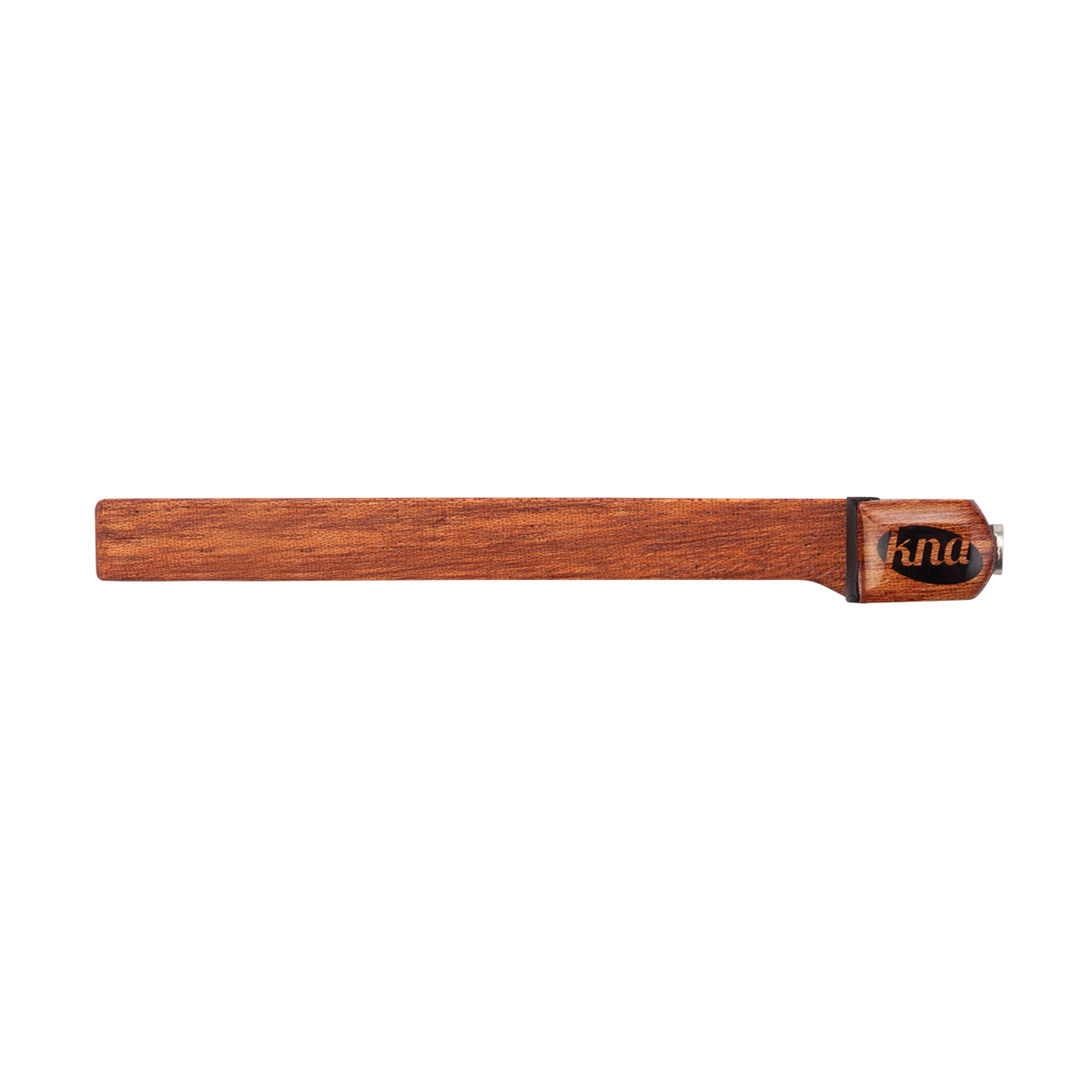

Wood case
The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.
Natural sound
NG-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

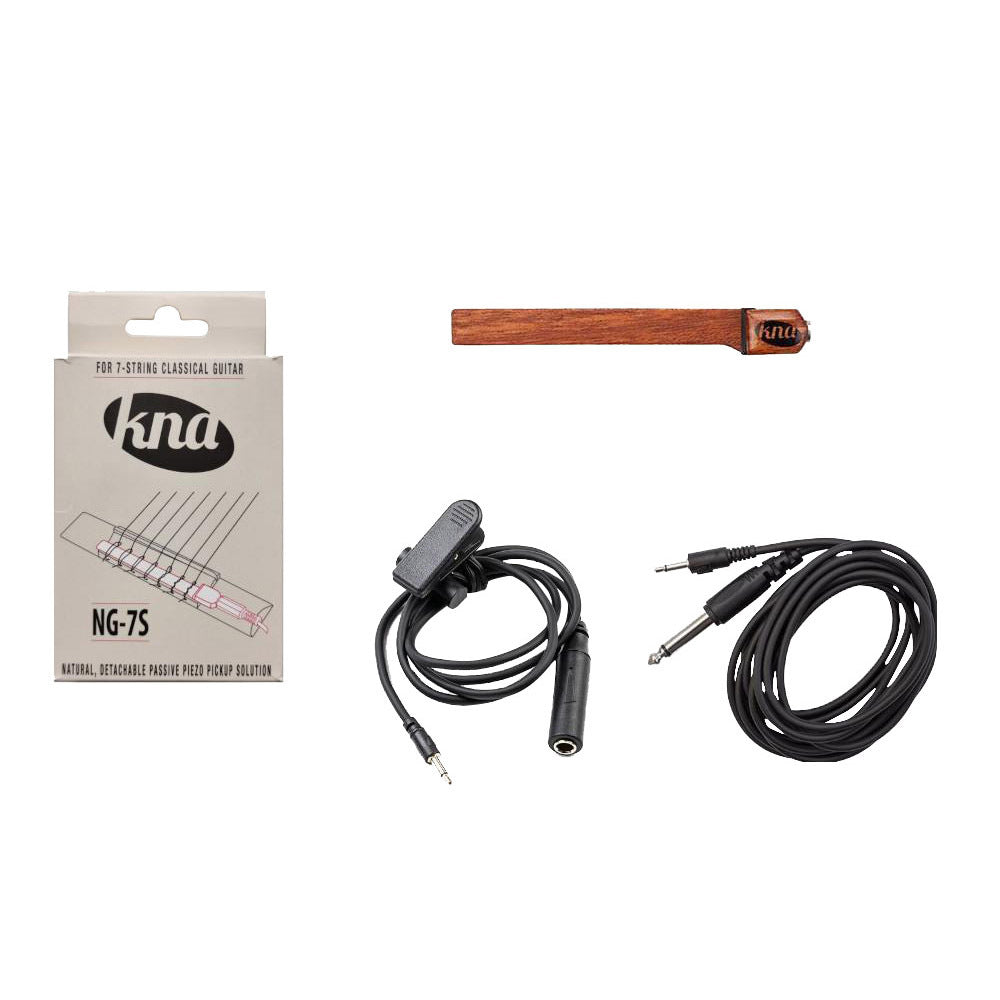

Complete set
Two cables are included — one 9-ft. 1/8" to 1/4" and one 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.
DOWNLOAD INSTALLATION INSTRUCTIONS HERE
| Specifications |
| Weight |
5g. / 0.176oz |
| Overall length |
107mm / 4.21" |
| Height / jack housing |
9mm / 0.35" |
| Active element measurements |
| Length |
90mm / 3.54" |
| Width |
9.6mm / 0.38" |
|
Thickness
|
2mm ± 0.05mm
0.079" ± 0.002"
|
| Wood |
Mahogany |
| Maximum Impedance |
500 Ω |
| Cables |
| Jumper cable with safety clip |
1meter / 3'
|
| Amp Cable |
3meter / 9'
|
